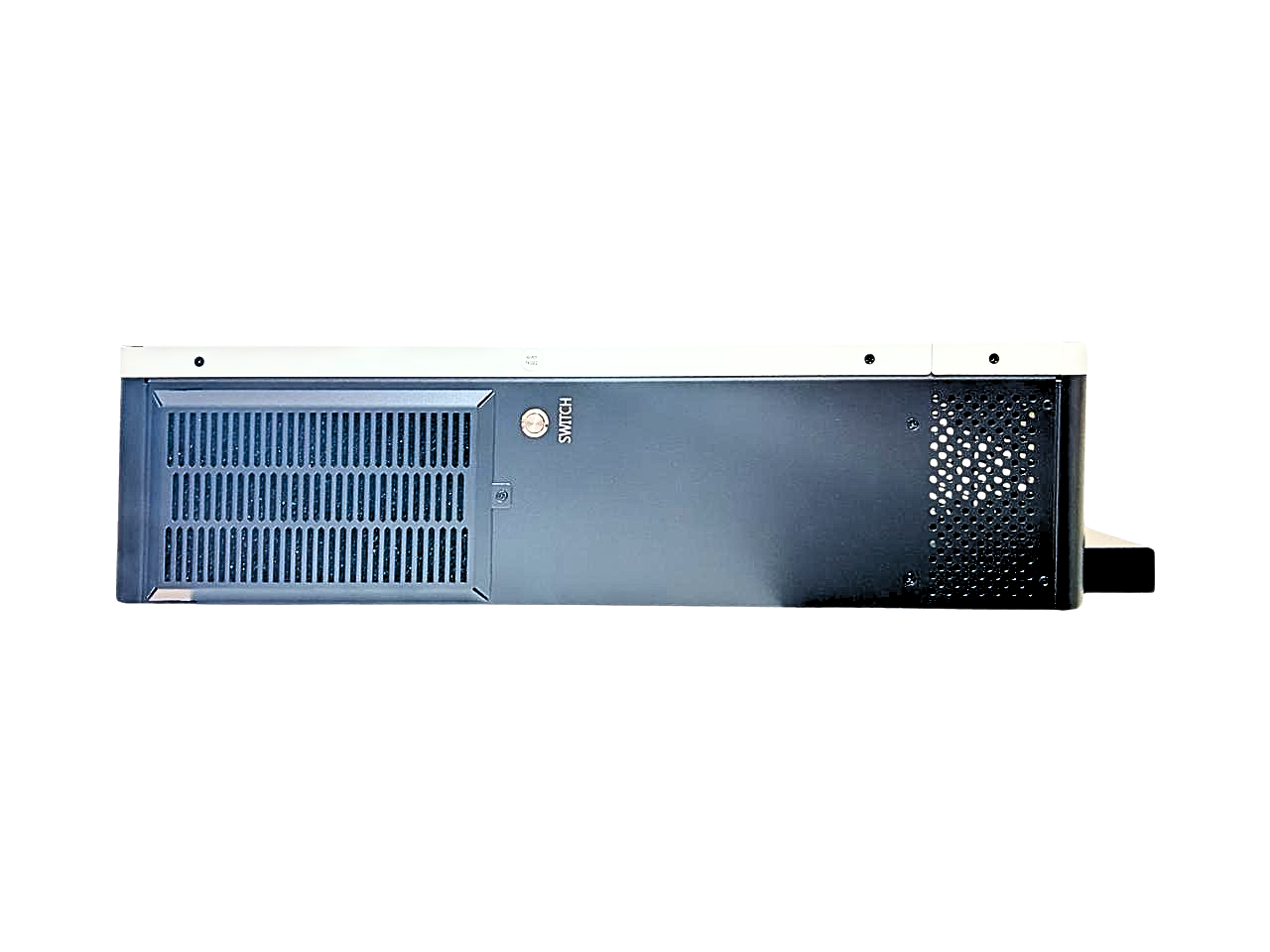

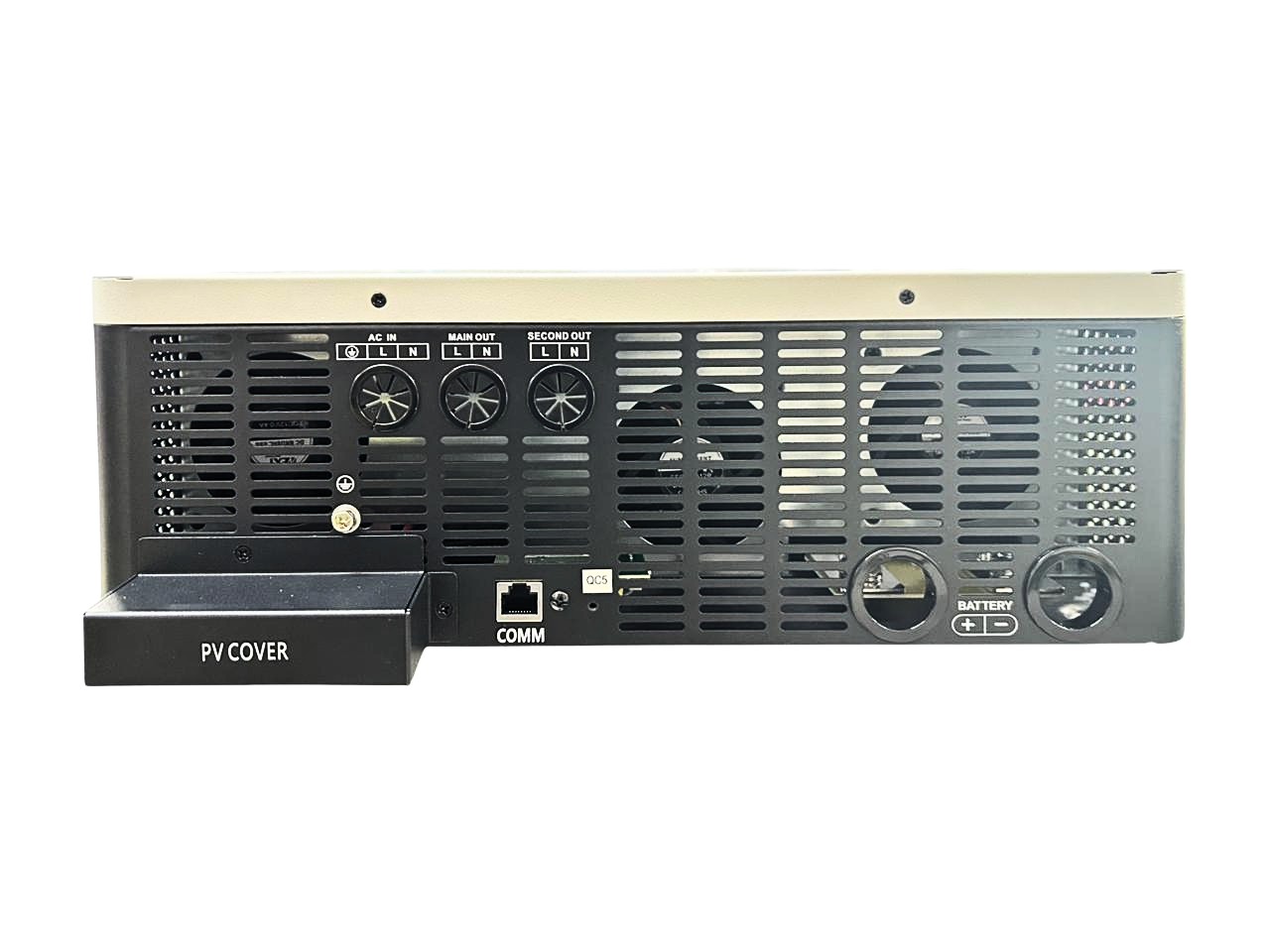

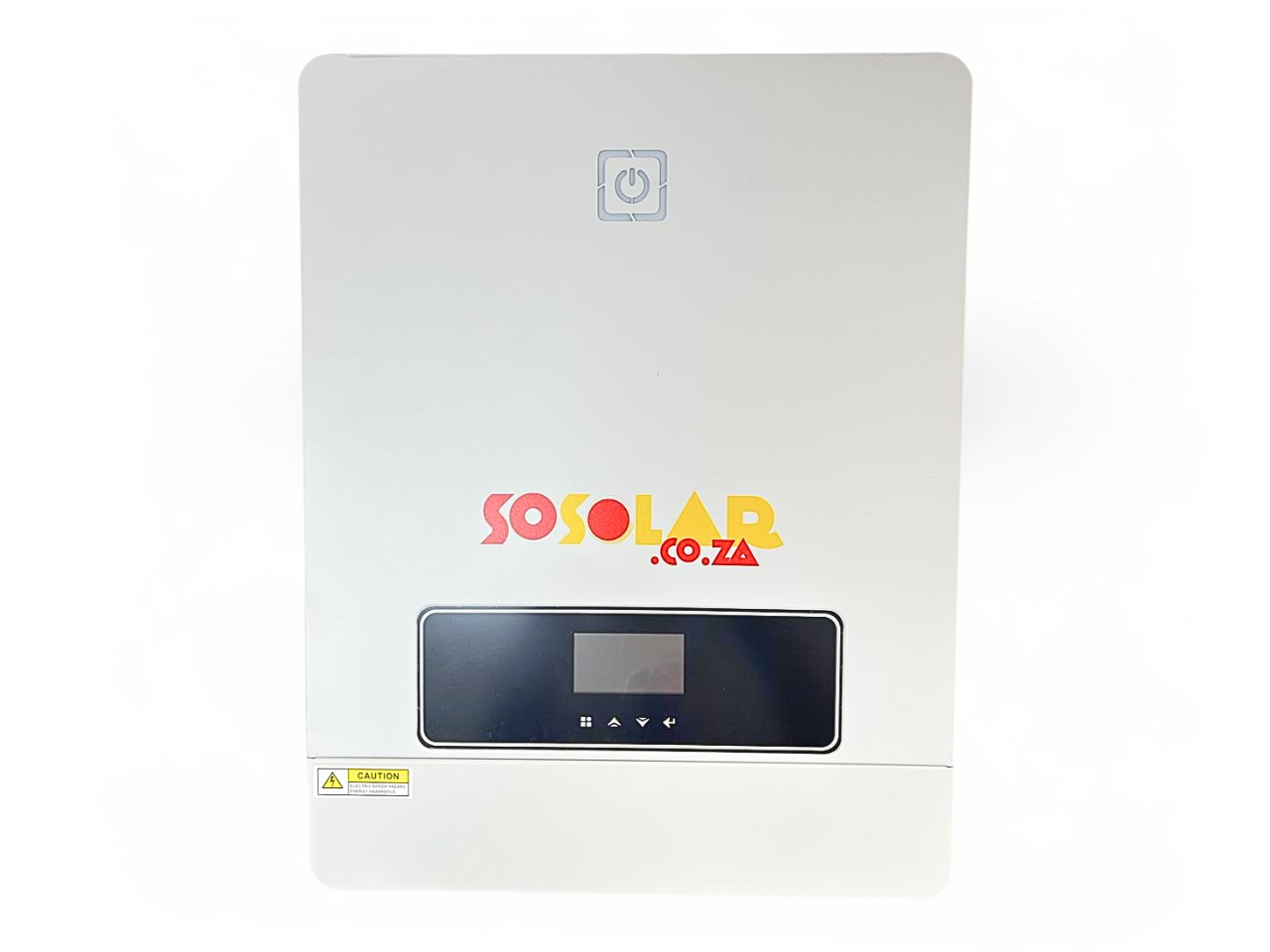

Hybrid Solar Inverter 10.2KW
Hybrid Solar Inverter 10.2KW
Couldn't load pickup availability
MPS-V MAX-10.2KW Inverter Charger Specifications
Overview
The MPS-V MAX-10.2KW is a high-power inverter charger designed for advanced solar power systems.
PV Input
- Nominal operating voltage: 360Vdc
- Maximum PV voltage: 500Vdc
- PV input voltage range: 90-450Vdc
- Maximum solar charging current: 160A
- Full load MPPT range: 360-450Vdc
- Rated power: 10,200W/10,200VA
Grid Tie
- Nominal output voltage: 220/230/240Vac
- Feed-in grid voltage range: 195-253Vac
- Feed-in grid frequency range: 49-51+1Hz
- Nominal output current: 44.3A
- Power factor range: >0.99
- Maximum conversion efficiency (DC/AC): 98%
- Nominal operating frequency: 50/60Hz
Two Load Output
- Full load: 10,200W
- Maximum main load: 10,200W
- Maximum second load: 3,400W
- Main load cut-off voltage: 44VDC
- Main load return voltage: 52VDC
AC Input
- Nominal operating voltage: 230Vac
- Maximum input current: 50A
- Nominal operating frequency: 50/60Hz
- Surge power: 20,400VA
- Maximum AC charging current: 140A
Battery
- Battery voltage range: 40-63VDC
- Maximum battery current: 212.5A
Certifications and Compliance
- ROHISD compliant
- CE certified
