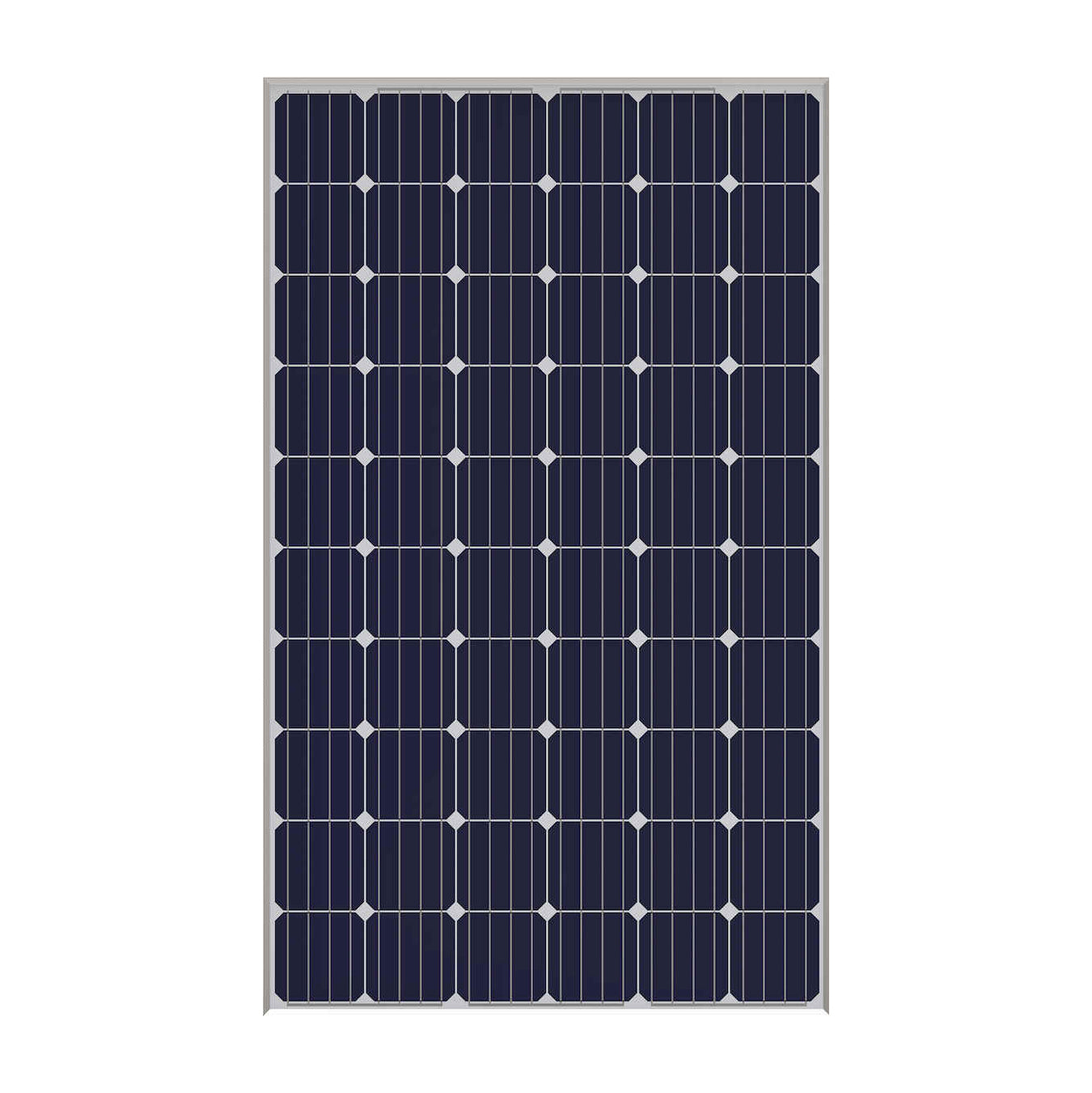

SOLAR CELLS
- Superior power conversion efficiency
- Good high temperature and low irradiance performance
- 100% In-line Electrical Luminance tested
- Positive tolerance for each panel
- Long-term electrical stability
- Mono
Warning:
- Electrical Hazard
- This Unit Produces Dc Electricity
- When Exposed to Light Cover
- Glass Before Removing Terminal Junction Box Lid
Model:ASL500-144-M
Rated Maximum Power (Pmax) (W): 500
Tolerance (TO) (0/0): 0—+3
Voltage at Pmax(Vmp) (V): 41.4
Current at Pmax(lmp) (A): 12.09
Open-Circuit Voltage(Voc) (V): 50
Short-Circuit Current(lsc) (A) 13.06
Dimensions (mm): 2094*1038*35
Maximum System Voltage (VDC): 1000
Application Class A
Mechanical load tested (Pa) : 2400
All technical data at standard test condition
0
Am=l.5 E=lOOOW/m 2 STC-25 C
