SOLAR CELLS - Superior power conversion efficiency - Good high temperature and low irradiance performance -
100% In-line Electrical Luminance tested - Positive tolerance for each panel - Long-term electrical stability -
Poly Warning: - Electrical Hazard - This Unit Produces Dc Electricity - When Exposed to Light Cover - Glass Before Removing Terminal Junction Box Lid

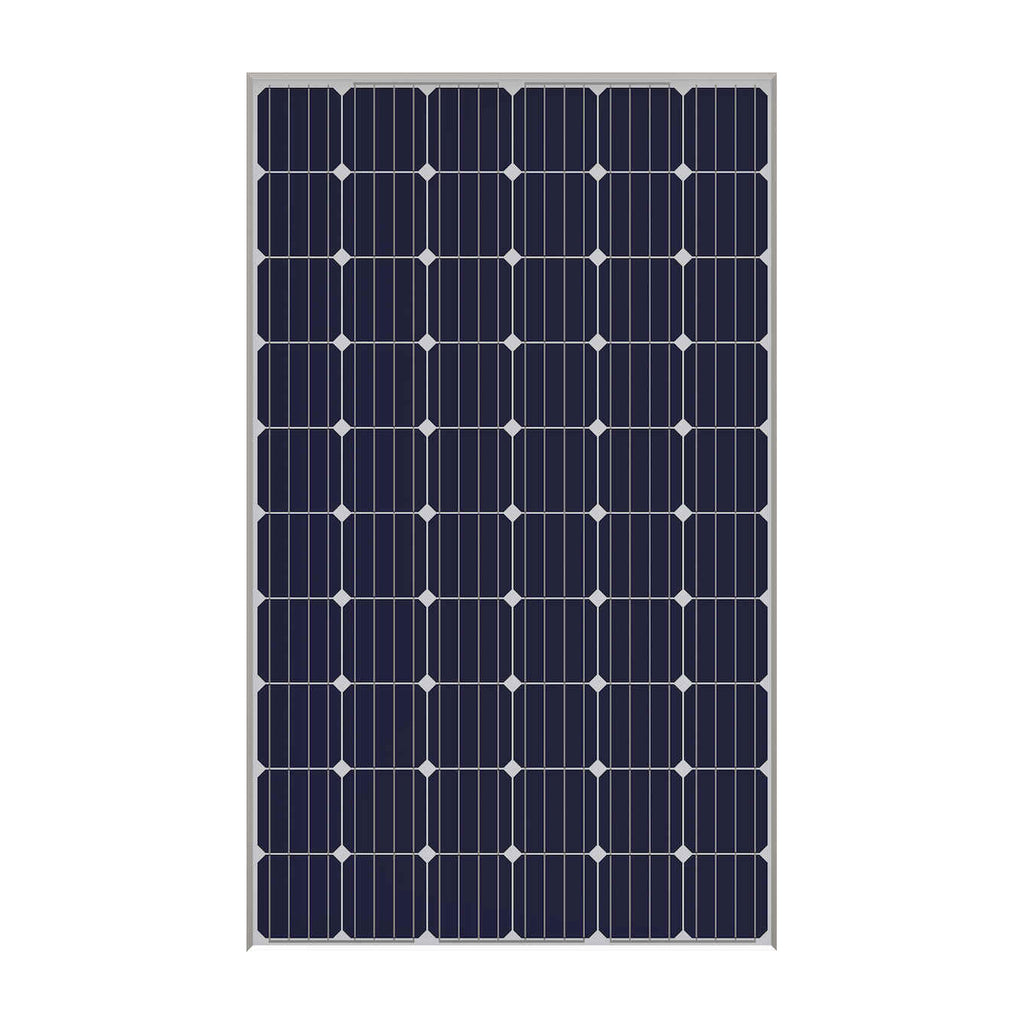

Model:ASL500-144-M Rated
Maximum Power (Pmax) (W): 385
Tolerance (TO) (0/0): 0—+3
Voltage at Pmax(Vmp) (V): 36.2
Current at Pmax(lmp) (A): 10.58
Open-Circuit Voltage(Voc) (V): 43.44 Short-Circuit Current(lsc) (A) 11.43
Dimensions (mm): 2094*1038*35
Maximum System Voltage (VDC): 1000
Application Class A Mechanical load tested (Pa) : 2400 All technical data at standard test condition 0 Am=l.5 E=lOOOW/m 2 STC-25 C
