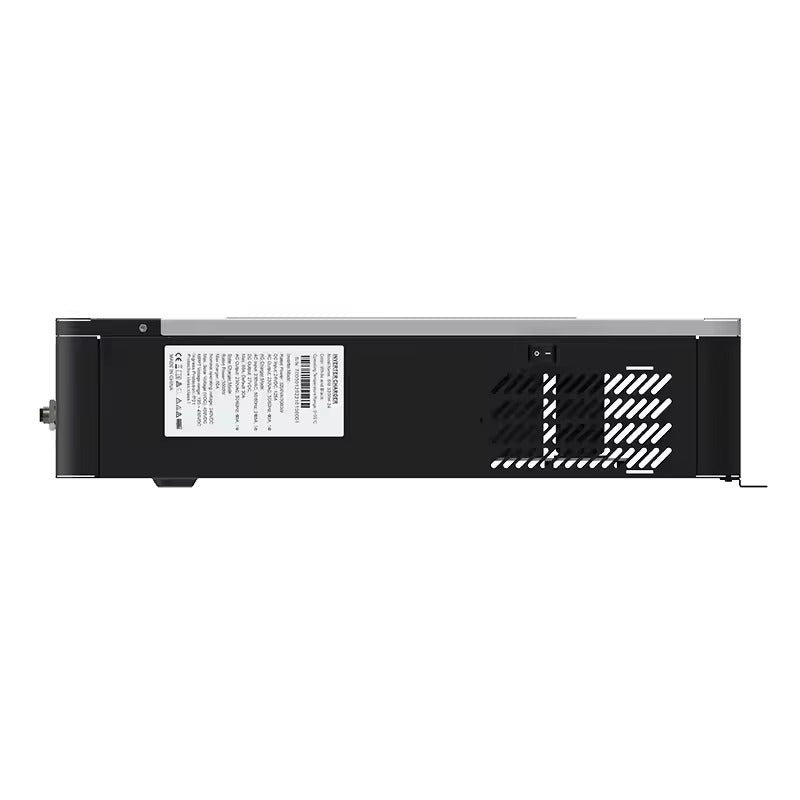

INVERTER CHARGER
Model Name: SP-3200
Operating Temperature Range: 0-55°C
S/N: 710001202501020669
Inverter Mode:
Rated Power: 3200VA/3000W
DC Input: 24VDC, 125A
AC Output: 230VAC,50/60Hz, 13A, 10
AC Charger Mode:
AC Input: 230VAC,50/60Hz,21.3A, 1Ф
DC Output: 2VDC,
Max.60A, Default 30A
AC Output: 230VAC, 50/60Hz, 13A, 1Ф
Solar Charger Mode:
Rated Power: 3000W
Max charger:80A
Nominal operating voltage:240VDC
Max. Solar Voltage(VOC):450VDC
MPPT Voltage range: 55~450VDC
Ingress Protection: IP21
Protective class class /
Product Introduction:
This is a multifunctional off-grid solar inverter that integrates:
- MPPT solar charging controller
- High-frequency pure sine wave inverter
- UPS function module
Ideal for off-grid backup power supply and spontaneous self-use systems.
Key Features:
1. Pure Sine Wave Output: Suitable for household appliances and personal computers.
2. Flexible Input Voltage: Selectable input voltage range for utility grid.

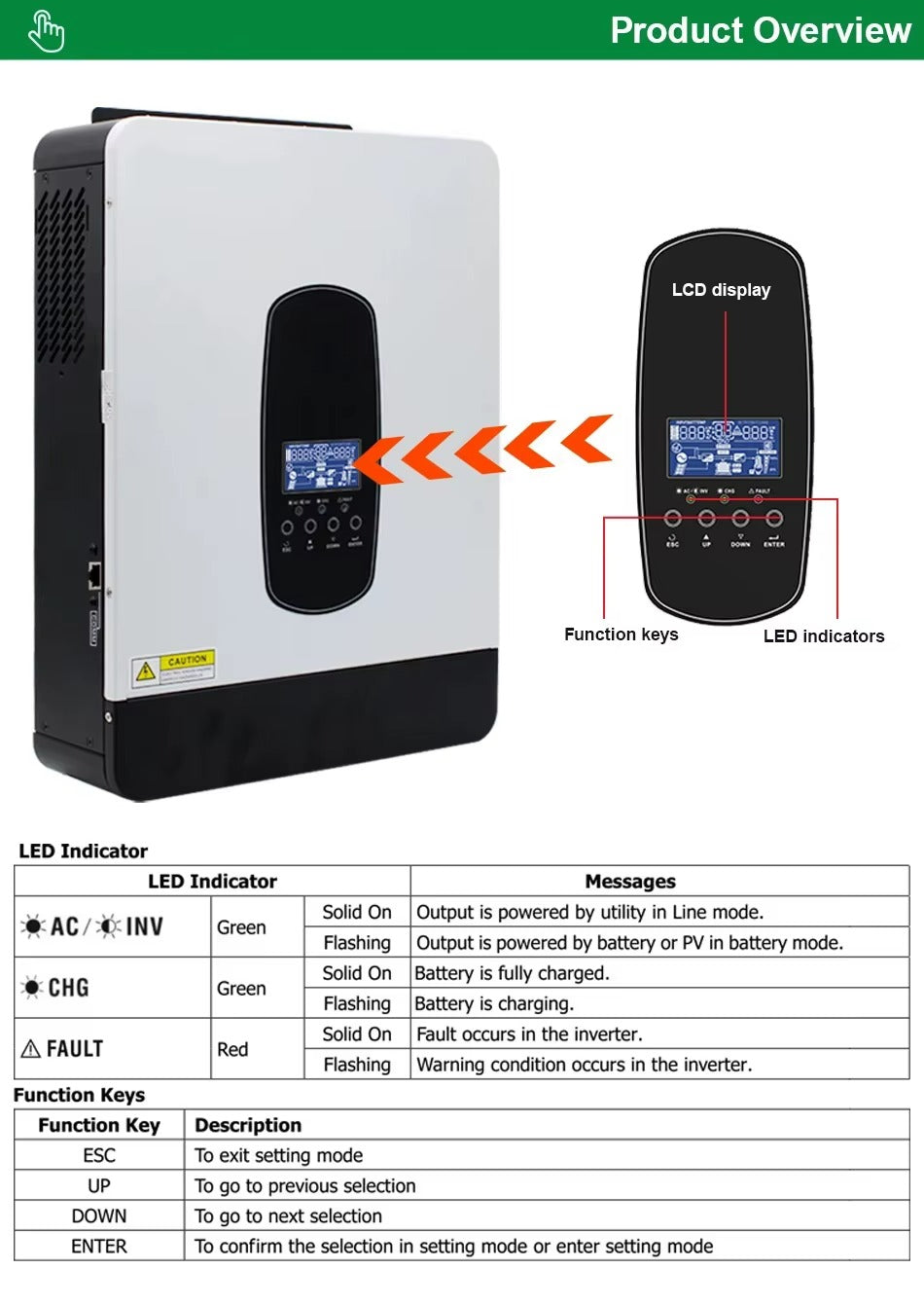

3. Adjustable Charging Current: Set charging current through LCD according to battery requirements.
4. Solar and Utility Grid Power: Power loads simultaneously with solar energy and utility grid.
5. AC Input Compatibility: Compatible with mains and generator.
6. Automatic Restart: Restarts automatically when mains power is restored.
7. RS485 Port: For communication with BMS (Battery Management System).
8. Protection Features: Overload, over-temperature, and short-circuit protection.
9. Intelligent Charging: Optimizes battery utilization.
10. Cold Start Function: Enables startup without battery power.
11. Intelligent Fan Speed Adjustment: Adjusts fan speed based on temperature, load, and charging current.

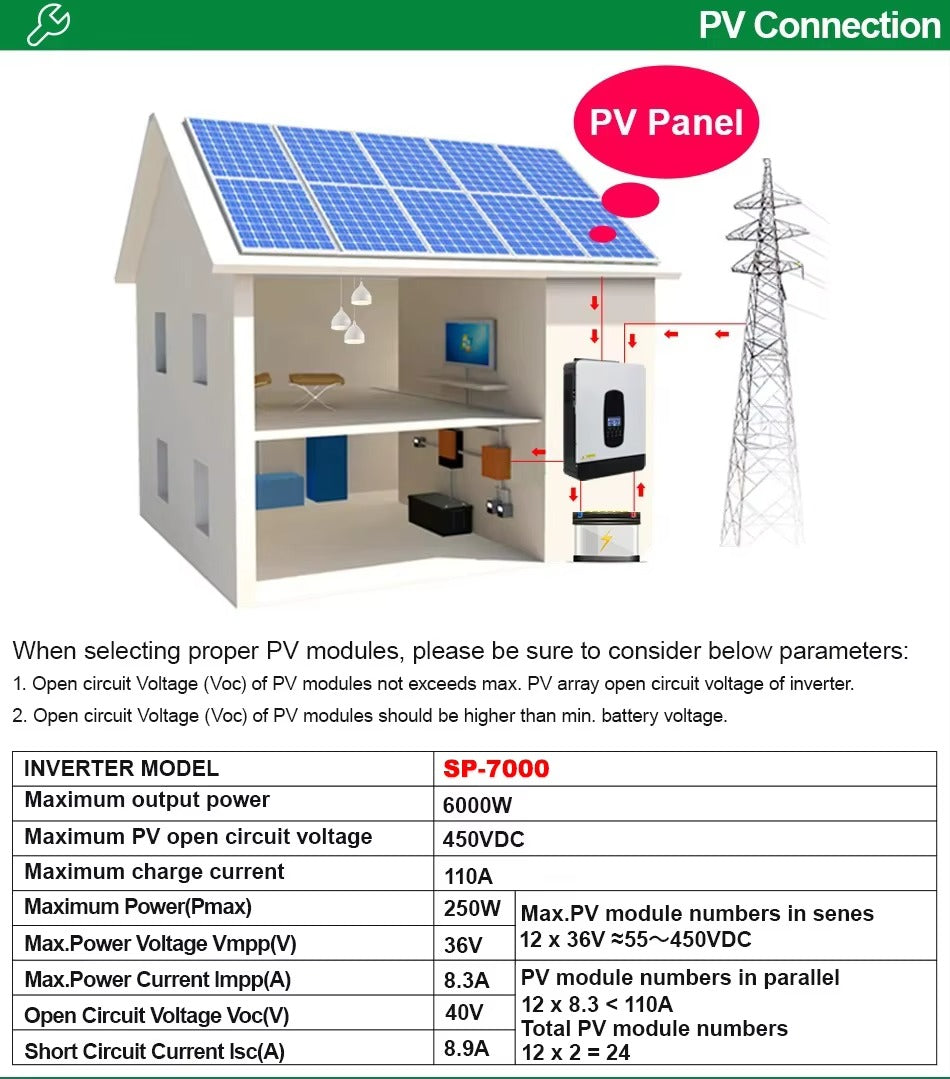

12. Built-in MPPT: Operating voltage range 55V~430V, open circuit voltage 450Voc.
13. WIFI Remote Monitoring (Optional): Monitor system status remotely through mobile app or website.

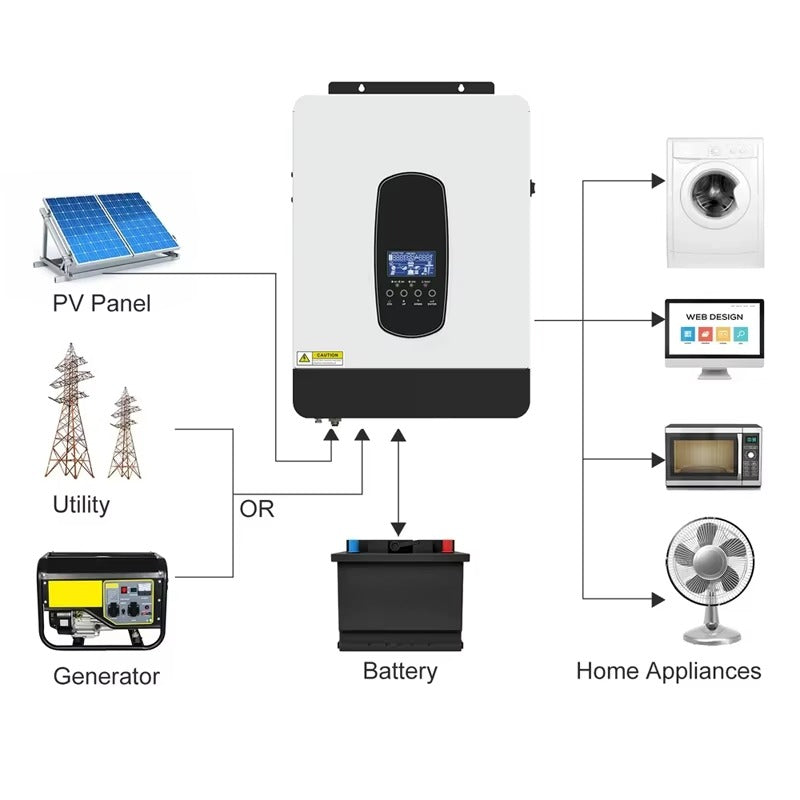

System Architecture:
Requires additional devices for complete operation:
- Generator or mains electricity
- Solar module (optional)
