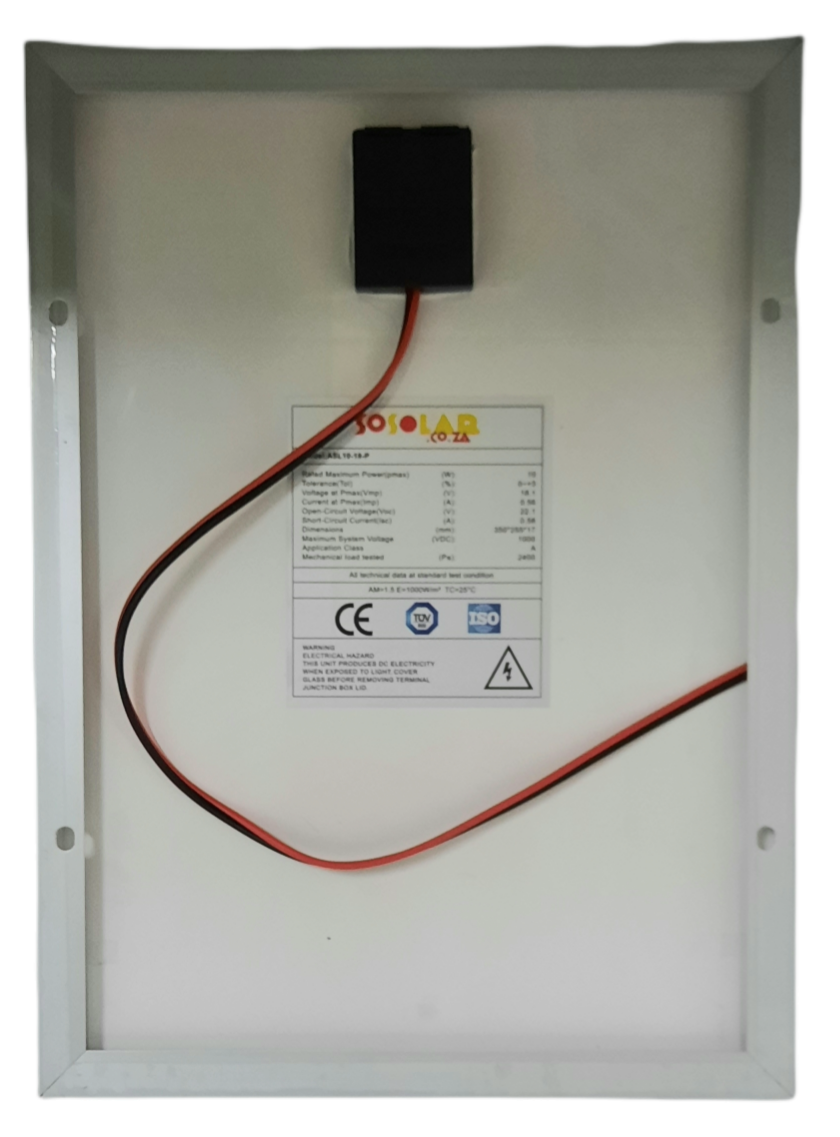

10W Solar Panel

Model Type - FD-PSP-10W

Maximum Power (Pmax) - 10W

Tolerance +-3%

Voltage at Pmax (Vmp) 18V

Current at Pmax (Imp) - 0.56A

Open Circuit Voltage (Voc) - 21.6V

Short-Circuit Current (Isc) - 0.61A

Maximum Serious Fuse Rating - 10A

Module Application - Class A-Fire Rating - Class C

Maximum System Voltage -1000V

Operating Temp -45 to 85

Module Size - 350*240*17mm
