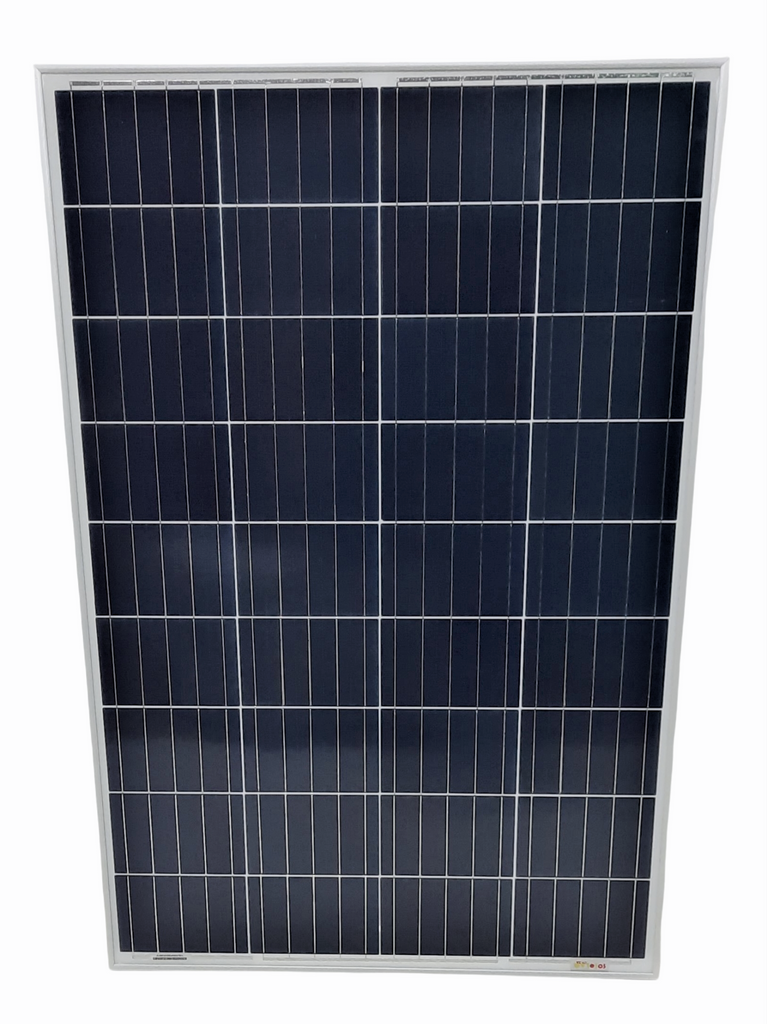

Model: ASL 100-18-P
Rated Maximum Power(pmax) (W): 100
Tolerance(Tol) (%): 0-+3
Voltage at Pmax(Vmp) (V): 18.1
Current at Pmax(Imp) (A): 5.53
Open-Circuit Voltage(Voc) (V): 22.1
Short-Circuit Current(Isc) (A): 5.88
Dimensions (mm): 100*670*30
Maximum System Voltage (VDC): 1000
Application Class: A
Mechanical load Tested (Pa): 2400
